Cisco 200-105 exam questions, 200-105 dumps easy to prepare for passing exams

Interconnecting Cisco Networking Devices Part 2 (ICND2)” Exam 200-105. Here you can get the latest free Cisco 200-105 exam exercise questions and answers for free and easily improve your skills!

200-105 exam:

This exam tests a candidate’s knowledge and skills related to LAN switching technologies, IPv4 and IPv6 routing technologies, WAN technologies, infrastructure services, and infrastructure maintenance. Follow the link to find more information about https://www.lead4pass.com/200-105.html exam.

Watch the Cisco 200-105 video tutorial online

Table of Contents:

Latest Cisco 200-105 pdf

[PDF] Free Cisco 200-105 pdf dumps download from Google Drive: https://drive.google.com/open?id=1K3EvLeAyVm8yee9CYt7372_gOOcuNM3m

200-105 ICND2 – Cisco:https://www.cisco.com/c/en/us/training-events/training-certifications/exams/current-list/200-105-icnd2.html

Free Cisco 200-105 Exam Practice Questions

QUESTION 1

What is the status of port-channel if LACP is misconfigured?

A. Forwarding

B. Enabled

C. Disabled

D. Errdisabled

Correct Answer: C



QUESTION 2

Which two protocols can detect native vlan mismatch errors? (Choose two.)

A. STP

B. Cisco Discovery Protocol

C. VTP

D. DTP

E. PAgP

Correct Answer: BC



QUESTION 3

After you configure a GRE tunnel between two networks, the tunnel comes up normally, but workstations on each side

of the tunnel cannot communicate.

Which reason for the problem is most likely true?

A. The tunnel source address is incorrect.

B. The tunnel destination address is incorrect.

C. The route between the networks is undefined.

D. The IP MTU is incorrect.

E. The distance configuration is missing.

Correct Answer: D



QUESTION 4

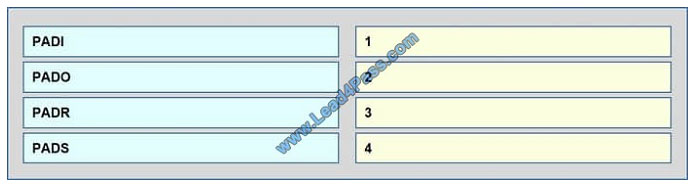

Drag and Drop the PPPoE message types from the left into the sequence in which PPPoE messages are sent on the

right.

Select and Place:pass4itsure 200-105 exam question q4

Correct Answer:

pass4itsure 200-105 exam question q4-1



QUESTION 5
Refer to the exhibit.
What three actions will the switch take when a frame with an unknown source MAC address arrives at the interface?
(Choose three.)lead4pass 200-105 exam question q5

A. Send an SNMP trap.
B. Send a syslog message.
C. Increment the Security Violation counter.
D. Forward the traffic.
E. Write the MAC address to the startup-config.
F. Shut down the port.
Correct Answer: ABC
Switchport Security Concepts and Configuration
The second piece of switchport port-security that must be understood is a security violation including what it is what
causes it and what the different violation modes that exist. A switchport violation occurs in one of two situations:
When the maximum number of secure MAC addresses has been reached (by default, the maximum number of secure
MAC addresses per switchport is limited to 1).
An address learned or configured on one secure interface is seen on another secure interface in the same VLAN.
The action that the device takes when one of these violations occurs can be configured:
Protect–This mode permits traffic from known MAC addresses to continue to be forwarded while dropping traffic from
unknown MAC addresses when over the allowed MAC address limit. When configured with this mode, no notification
action
is taken when traffic is dropped.
Restrict–This mode permits traffic from known MAC addresses to continue to be forwarded while dropping traffic from
unknown MAC addresses when over the allowed MAC address limit. When configured with this mode, a syslog
message is
logged, a Simple Network Management Protocol (SNMP) trap is sent, and a violation counter is incremented when
traffic is dropped. Shutdown–This mode is the default violation mode; when in this mode, the switch will automatically
force
the switchport into an error disabled (err-disable) state when a violation occurs. While in this state, the switchport
forwards no traffic. The switchport can be brought out of this error disabled state by issuing the errdisable recovery
cause CLI
command or by disabling and re-enabling the switchport. Shutdown VLAN–This mode mimics the behavior of the
shutdown mode but limits the error disabled state the specific violating VLAN.
Reference:
http://www.ciscopress.com/articles/article.asp?p=1722561
Switchport Security Violations



QUESTION 6
What is the alert message generated by SNMP agents called? (Choose two.)
A. TRAP
B. INFORM
C. GET
D. SET
Correct Answer: AB



QUESTION 7
Scenario
Refer to the topology. Your company has connected the routers R1, R2, and R3 with serial links. R2 and R3 are
connected to the switches SW1 and SW2, respectively. SW1 and SW2 are also connected to the routers R4 and R5.
The EIGRP routing protocol is configured.
You are required to troubleshoot and resolve the EIGRP issues between the various routers. Use the appropriate show
commands to troubleshoot the issues.
Instructions
Enter the IOS commands on the device to verify the network operations and to find the answers for the multiple-choice
questions.
THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.
Click the device to gain access to the console of the device. No console or enable passwords are required.
To access the multiple-choice questions, click the numbered boxes on the left of the top panel.
There are four multiple-choice questions with this task. Be sure to answer all four questions before clicking the Next
button.lead4pass 200-105 exam question q7

Router R6 does not form an EIGRP neighbor relationship correctly with router R1. What is the cause for this
misconfiguration?
A. The values mismatch.
B. The AS does not match.
C. The network command is missing.
D. The passive-interface command is enabled.
Correct Answer: C
The link from R1 to R6 is shown below:

lead4pass 200-105 exam question q7-1

As you can see, they are both using e0/0. The IP addresses are in the 192.168.16.0 network: But when we look at the
EIGRP configuration, the “network 192.168.16.0” command is missing on R6.

lead4pass 200-105 exam question q7-2 lead4pass 200-105 exam question q7-3 lead4pass 200-105 exam question q7-4 lead4pass 200-105 exam question q7-5



QUESTION 8
Hotspot Questionlead4pass 200-105 exam question q8

To allow or prevent load balancing to network 172.16.3.0/24, which of the following commands could be used in R2?
(Choose two.)
A. R2(config-if)#clock rate B. R2(config-if)#bandwidth
C. R2(config-if)#ip ospf cost
D. R2(config-if)#ip ospf priority
E. R2(config-router)#distance ospf
Correct Answer: BC
OSPF Cost http://www.cisco.com/en/US/tech/tk365/technologies_white_paper09186a0080094e9e.shtml#t6 The cost
(also called metric) of an interface in OSPF is an indication of the overhead required to send packets across a certain
interface. The cost of an interface is inversely proportional to the bandwidth of that interface. A higher bandwidth
indicates a lower cost. There is more overhead (higher cost) and time delays involved in crossing a 56k serial line than
crossing a 10M ethernet line. The formula used to calculate the cost is:
cost= 10000 0000/bandwith in bps
For example, it will cost 10 EXP8/10 EXP7 = 10 to cross a 10M Ethernet line and will cost 10 EXP8/1544000 =64 to
cross a T1 line. By default, the cost of an interface is calculated based on the bandwidth; you can force the cost of an
interface with the ip ospf cost interface subconfiguration mode command.



QUESTION 9
Which two statements about the spanning-tree bridge ID are true? (Choose two.)
A. It is composed of a 4-bit bridge priority and a 12-bit system ID extension.
B. The bridge ID is transmitted in the IP header to elect the root bridge.
C. The system ID extension is a value between 1 and 4095.
D. It is composed of an 8-bit bridge priority and a 16-bit system ID extension.
E. The bridge priority must be incremented in blocks of 4096.
Correct Answer: AE



QUESTION 10
Which VLAN bridge priority value is assigned by the set span tree root command?
A. 8192
B. 16384
C. 28672
D. 32768
Correct Answer: A



QUESTION 11
Which utility can you use to identify redundant or shadow rules?
A. The ACL trace tool in Cisco APIC-EM.
B. The ACL analysis tool in Cisco APIC-EM.
C. The Cisco APIC-EM automation scheduler.
D. The Cisco IWAN application.
Correct Answer: B



QUESTION 12
Which statement about link-state and distance-vector routing protocols is true?
A. Unlike distance-vector routing protocols, link-state routing protocols can cause routing loops.
B. Distance-vector routing protocols converge more quickly than link-state routing protocols.
C. Distance-vector routing protocols use more memory than link-state routing protocols.
D. Unlike distance-vector routing protocols, link-state routing protocols send routing-table updates to neighbors only
after adjacency is established.
Correct Answer: D



QUESTION 13

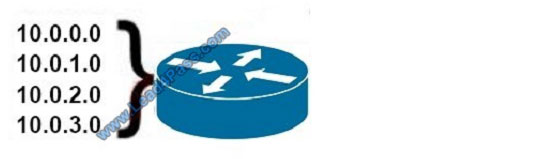

Refer to the exhibit. What is the most appropriate summarization for these routes?lead4pass 200-105 exam question q13

A. 10.0.0.0 /21
B. 10.0.0.0 /22
C. 10.0.0.0 /23
D. 10.0.0.0 /24
Correct Answer: B
